The NeoPixel Ring introduces WWA LEDs with integrated drivers, offering flexible customization for lighting projects. Discover its addressable features and application potential.
Introducing the NeoPixel Ring with WWA LEDs
The latest iteration of the NeoPixel Ring elevates smart LED technology by incorporating white WWA (Warm White Amber) LEDs, enhancing the range of lighting effects for creators and engineers. The integration of three color temperatures – warm white, cool white, and amber – empowers users to achieve pure white light that fits diverse applications. Whether aiming for ambient lighting or precise project illumination, the newly designed ring provides targeted use with an aesthetic appeal.

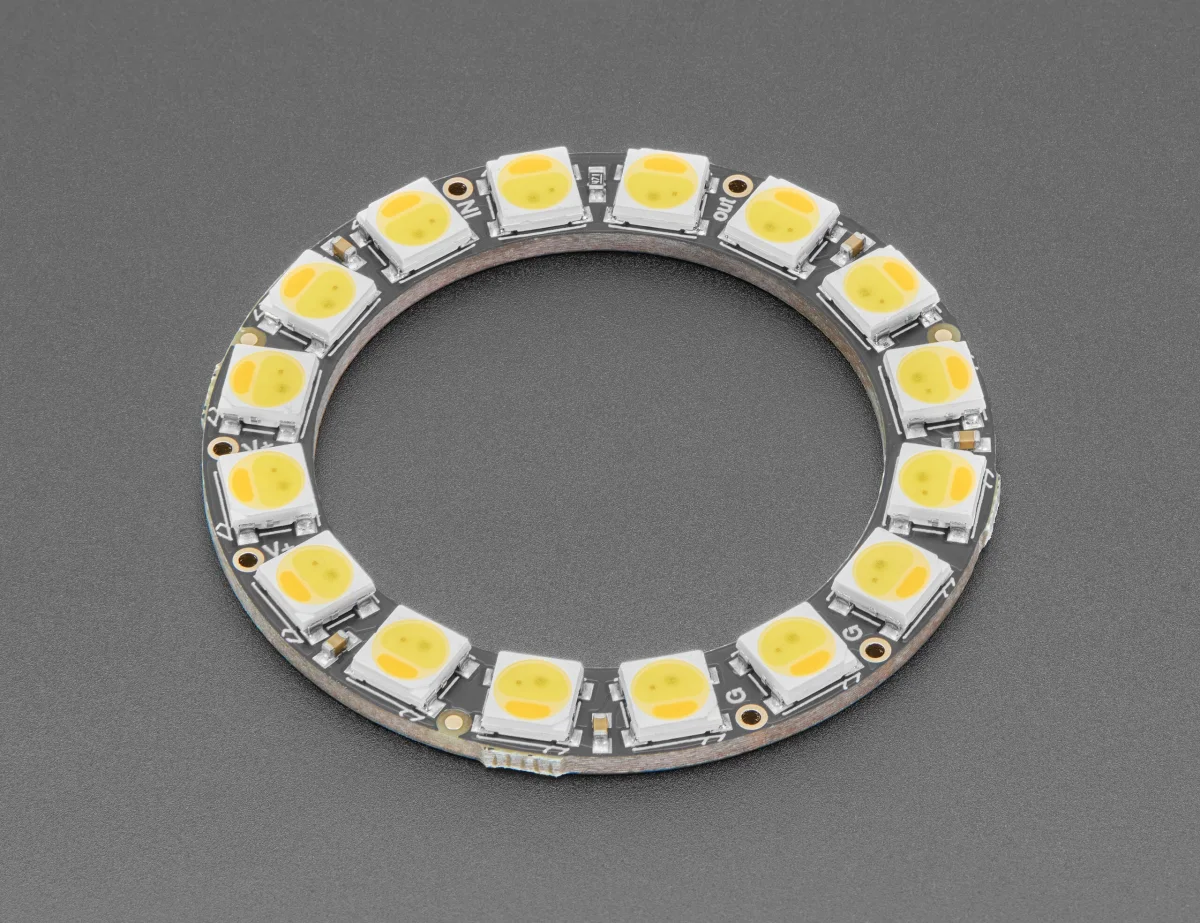

Featuring 16 ultra-bright LEDs configured in a circular layout with a diameter of 1.75 inches (44.5mm), this innovative lighting solution supports creative arrangements. The chainable capability allows you to link multiple rings by connecting the output pin of one to the input of the next, streamlining the control process. This approach conserves pins on a microcontroller by using only a single pin to manage an extensive setup of connected NeoPixel Rings.
Technical Specifications and Advantages
This WWA version’s design benefits from integrated drivers within each LED, eliminating the need for external choke resistors and promoting a slimmer profile. Each LED operates at approximately 18mA, ensuring a consistent brightness level across varied power inputs. Simply power the entire assembly with a 5VDC source, and you’re all set to generate impactful lighting effects.
The collaboration of 8-bit Pulse Width Modulation (PWM) channels allows for detailed color control. With 4 channels per LED, the cumulative control results in a 32-bit color spectrum. This flexibility offers engineers the ability to introduce dynamic lighting sequences and effects suited to their project needs, ranging from art installations to cosplay outfits.
Compatibility and Control Options
It's worth noting that the NeoPixel Ring utilizes a specific timing protocol that necessitates a real-time microcontroller for operation. Suitable options include AVR, Arduino, PIC, or mbed controllers. However, it’s not compatible with Linux-based systems or interpreted microcontrollers like the netduino or Basic Stamp. The accompanying NeoPixel library for Arduino provides comprehensive support, though it’s optimized for AVR cores. Users may need to explore driver code adaptations if utilizing alternative microcontroller platforms, and a processor speed of 8MHz or faster is recommended for optimal performance.
Enhanced Lighting Capabilities and Aesthetic Effects
The construction of the NeoPixel means that when unlit, the LEDs present a unique appearance reminiscent of an egg yolk, offering a distinctive visual element, even when inactive. Once powered, these LEDs emerge as intensely bright sources, ideal for illumination in a variety of contexts. Account for potential overexposure in close-range applications due to their powerful output; however, the color warmth versatility opens avenues for sophisticated design choices and thematic setups.
For users looking beyond the WWA variant, Adafruit also offers additional NeoPixel Ring configurations, including:
Practical Considerations and Future Prospects
The NeoPixel Ring represents a practical advancement for lighting enthusiasts and professionals alike, but it’s important to remain cautious of potential limitations. The integration of specialized timing protocols could introduce challenges when interfacing with certain platforms, thus demanding careful selection of hardware components.
Looking ahead, further innovations in the realm of smart LEDs may include enhancements in power efficiency and cross-compatibility with various microcontroller technologies. As demand for customizable lighting solutions grows, developers and product managers should keep a watchful eye for updates in both hardware and software that could expand compatibility and ease of integration.
As of now, the NeoPixel Ring, with its potent mix of individual control and seamless chaining, stands as an accessible solution for custom lighting applications across a range of industries. This flexibility, combined with ease of integration into existing projects, positions it as a valuable asset for both hobbyists and professionals aiming for bright, customizable lighting.
