New NeoPixel Ring Introduces Versatile WWA LEDs with Integrated Drivers

Adafruit has introduced an updated version of their popular NeoPixel Ring, this time showcasing a 12 x 5050 WWA (Warm White Amber) configuration. These rings stand out due to their ability to enhance visual projects with three distinct color temperatures: warm white, cool white, and amber. This gives creators the flexibility to achieve precise lighting effects ideal for various applications, from ambient lighting to project displays.

LED Composition and Versatility

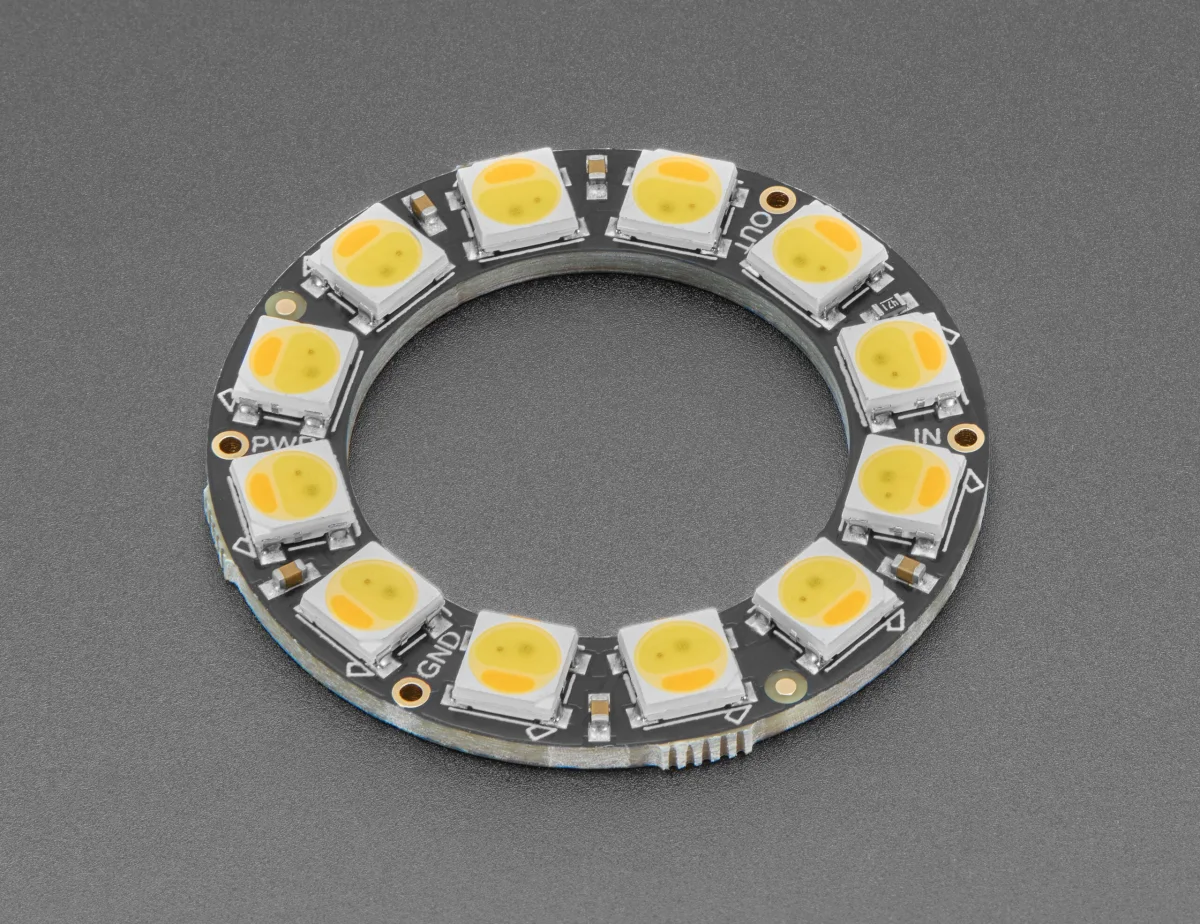

The NeoPixel Ring consists of twelve independently controlled LEDs arranged in a compact circular format with an outer diameter of 1.75 inches (44.5 mm). Each LED incorporates a driver chip, which allows for individual addressability—an important feature for projects requiring nuanced control over lighting. The integration of an internal driver also eliminates the need for bulky external components, streamlining design without compromising performance.

Each WWA LED operates on a constant current of approximately 18mA, ensuring that brightness remains consistent across varying power supply conditions. This consistency provides a more uniform output, which is critical for applications requiring precise lighting effects. Users can easily chain multiple rings together, connecting the output pin of one to the input pin of the next, thereby controlling extensive arrays with a single microcontroller pin. This setup drastically reduces wiring complexity and optimizes project efficiency.

Technical Specifications and Requirements

The NeoPixel’s functionality is heavily reliant on a specific timing protocol, dictated by a singular data line. This necessitates the use of a real-time microcontroller for communication, with the recommendation of controllers such as AVR, Arduino, PIC, or mbed. Those utilizing Linux-based microcomputers or slower interpreters like the netduino or Basic Stamp will likely face compatibility issues. For optimal control and performance, Adafruit provides a tailored NeoPixel library for Arduino, specifically designed to interact with these LEDs. It is compatible primarily with AVR cores, and users may need to explore community ports available for other microcontrollers.

Additionally, an 8MHz or faster processor is essential to handle the timing requirements effectively. This ensures that the data transmitted through the LEDs maintains integrity, delivering the desired lighting effects consistently. The combination of a real-time controller and the optimized delivery of data allows for complex animations and effects to be executed flawlessly, bringing ambitious projects to life.

Applications and Integration

The usage scenarios for the NeoPixel Ring are substantial. Whether you’re building a custom home automation system, interactive art installations, or unique displays, the visual impact of the WWA LEDs can enhance the viewer's experience significantly. Designers can expect to explore a palette of colors with rich warmth and depth, thanks to the blend of warm white and amber tones.

Moreover, this product builds on Adafruit's previous offerings, which include various configurations of RGBW and RGB LEDs. The inherent ability to combine different products in a single project means that users can create cascaded effects or color transitions that are not only vibrant but also well-coordinated, showcasing an array of color temperatures tailored to specific atmospheric requirements.

Limitations and Future Considerations

While the NeoPixel Ring offers a substantial improvement in white LED technology, there are still considerations for users to keep in mind. The reliance on specific microcontroller types can impede integration into easily available Linux environments. Furthermore, while the color quality is significantly better compared to standard RGB LEDs, the necessity for careful power management remains. Users must ensure that their power supply can handle the demands of multiple rings, especially when used at full brightness.

As with many electronics products, potential users should monitor user feedback and updates surrounding the product as Adafruit improves software support and addresses any unforeseen challenges in integration. Continuous enhancements in both the hardware and microcontroller libraries could further expand the capabilities of this product line.

For those eager to delve into advanced lighting projects, the NeoPixel Ring (12 x 5050 WWA) is currently available and shipping, promising to enrich your creations with superior lighting performance.
